Problems like corrosion and energy waste can put your facility at risk, costing thousands in repairs. Is black foam glass insulation truly reliable for long-term tank protection?
Black foam glass insulation offers excellent resistance to moisture and fire, which makes it an effective thermal barrier for tanks and pipes. With its closed-cell structure, it provides long-lasting insulation and helps prevent corrosion under insulation (CUI).
When I started exploring insulation options for our tanks, I noticed how many products claimed to solve the same problems. I wanted to make sure I wasn't missing any drawbacks. I also wanted to know how foam glass could help me meet my facility’s safety standards. Let’s take a closer look at the realities behind black foam glass insulation.
What are the disadvantages of foam glass insulation?
Corrosion, moisture, and temperature extremes push insulation materials to the limit. Despite the impressive qualities of foam glass, are there any drawbacks I should know about?
Foam glass insulation is brittle and can crack under impact or movement, which may lead to gaps and loss of thermal performance. Handling and installation require care to avoid breakage and keep protection consistent.

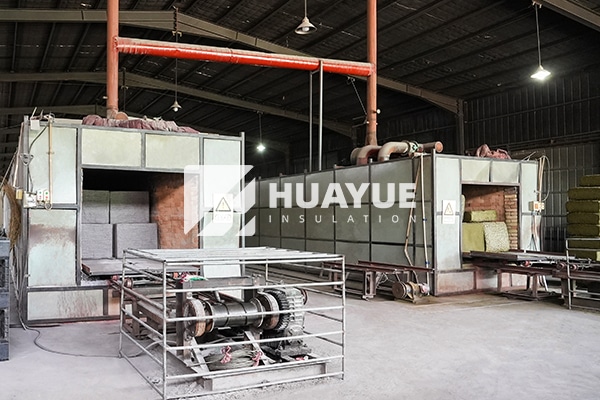

Foam glass works well in many industrial settings. But, I have learned it is not perfect for every application. The main downside for me is brittleness. Black foam glass is made from recycled glass processed at high temperatures. Its closed structure blocks water, chemicals, and vapor. However, that same rigid structure will break if struck, dropped, or stressed by tank movement. I had a shipment arrive once where half the pieces were chipped just from careless handling. Repairs mean extra labor.
Another drawback is weight. Compared to some alternatives, such as rubber foam, foam glass panels are heavier. That makes installation on tall tanks more difficult. The cost is also something to consider. Foam glass outlasts cheaper products, but upfront costs are higher. Maintenance is usually low, but I budget for occasional patching if a worker drops a tool or bumps a panel. All insulation materials have trade-offs. So I always push my team to handle foam glass gently and store it securely. Below is a simple table breaking down disadvantages:
| Disadvantage | Impact on tank setup | Recommended mitigation |
|---|---|---|
| Brittle, cracks | Needs careful handling; patching | Train staff, inspect shipments |
| Heavy panels | Harder to install on high units | Use lifting equipment |
| Higher cost | Larger initial investment | Calculate full life-cycle savings |
What is the life expectancy of FOAM GLAsS?
Every engineer wants to stretch the useful life of their system. How long does foam glass insulation really last on tanks?
Black foam glass insulation can last over 50 years if installed correctly and protected from heavy impacts. Its closed-cell design resists rot, mold, and water absorption, ensuring stability and minimal maintenance over decades.
When I first researched foam glass insulation, life expectancy was one of my top questions. I want to avoid frequent replacement or unpredictable repairs. Fortunately, foam glass impressed me for durability. Because it doesn't absorb water, foam glass avoids rot and mold. Unlike organic insulation, it doesn't break down over time. I saw old tanks where the foam glass insulation looked nearly new even after three decades. Its chemical resistance means it won't react with spilled acids or solvents common in chemical plants.
Heavy impacts or movement can shorten its life, so I check for cracks after any maintenance work. Still, if handled right, foam glass often lasts longer than the tanks themselves. Maintenance usually means patching a chipped panel or replacing insulation after damage. Few insulation materials offer such a long useful life. For instance, mineral wool might need replacement after 20 years, while foam glass can double or triple that. Here is a clear table summarizing material longevity:
| Material type | Expected service life | Key durability points |
|---|---|---|
| Black foam glass | 50+ years | No rot, resists water and chemicals |
| Mineral wool | 20–30 years | May absorb water, prone to compression |
| Rubber foam | 15–25 years | UV sensitive, may shrink over time |
What is FOAM GLAsS insulation used for?
Facility managers have many options when insulating tanks and pipes. What types of applications benefit most from foam glass insulation?
Foam glass insulation is used for tank thermal protection, cryogenic lines, chemical pipework, and roof decks. Its non-combustible and waterproof nature makes it ideal for safety-critical and moisture-prone environments.

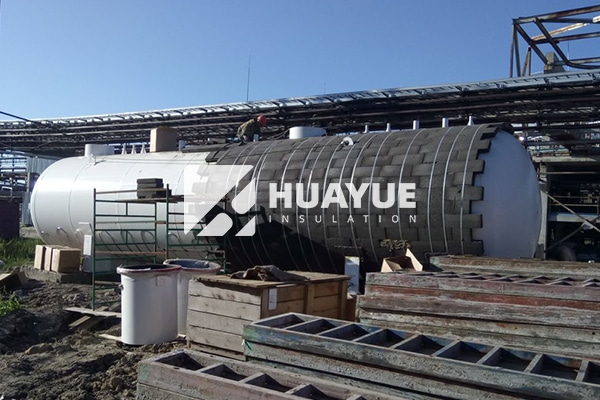

Foam glass stands out for several reasons when I choose it for industrial applications. Its closed-cell structure keeps water, vapor, and chemicals away from tank surfaces. That’s necessary for cryogenic tanks, where even small leaks can cause expensive failures. Engineers like me also rely on foam glass for pipe insulation. It withstands temperature swings from -200°C up to 430°C, so I use it on both freezing LNG tanks and hot steam lines.
Another common application is in chemical storage tanks. Foam glass does not react or degrade after exposure to acids or solvents that destroy organic materials. Its fireproof properties satisfy insurance and regulatory demands for plant safety. At one site, we used foam glass on a tank roof to prevent condensation and structural damage. Below, I summarize where foam glass works best:
| Application Area | Why foam glass excels | Notable benefits |
|---|---|---|
| Cryogenic tanks | Stays rigid in extreme cold, resists ice | Prevents heat loss, CUI |
| Chemical process pipework | Chemical inertness, waterproof | Safer, longer-lasting insulation |
| Tank roofs/decks | Stops condensation, fireproof | Physically durable, low upkeep |
Conclusion
Black foam glass delivers long-term tank insulation, with few maintenance needs and strong fire, water, and chemical resistance. Its only clear weaknesses are brittleness, weight, and cost.
